Rainwater Harvesting for Home Garden Irrigation

A single inch of rain falling on a 1,000-square-foot roof generates roughly 600 gallons of runoff. Most of it disappears into gutters and storm drains within minutes. Rainwater harvesting for garden irrigation captures that flow before it escapes — converting a routine weather event into a free, renewable water supply for vegetables, herbs, and ornamental beds alike.

Home gardeners growing food in raised beds, containers, or in-ground plots typically depend on municipal water or wells. Both sources carry costs, seasonal restrictions, and chemical additives — primarily chlorine and chloramine — that beneficial soil microbes tolerate poorly. Collected rainwater sidesteps those problems entirely. It arrives soft, slightly acidic, and at ambient temperature: conditions most garden plants actively prefer over treated tap water.

For anyone tending edible crops and following plant and farming guides, setting up even a basic collection system is one of the highest-return weekend projects available. Materials are inexpensive, installation takes one to two days, and the savings compound across every growing season.

The Science and History Behind Rainwater Harvesting for Garden Use

Rainwater harvesting is not a modern invention. Civilizations across the Middle East, South Asia, and the Mediterranean built cisterns and rock-cut channels thousands of years ago to survive seasonal droughts. Modern residential systems use the same principle: intercept precipitation at a collection surface, filter debris, and store the water until irrigation is needed.

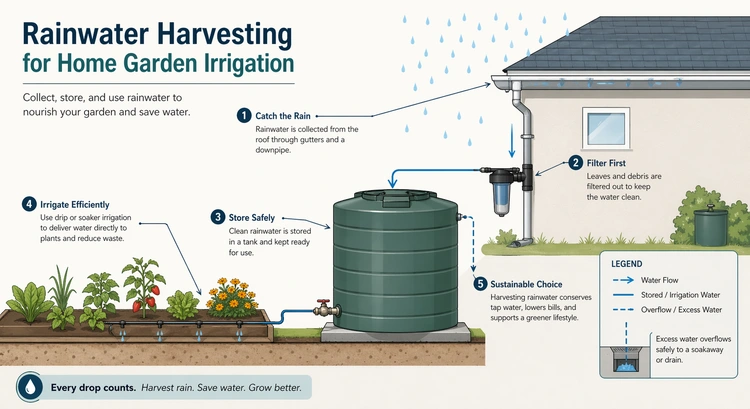

How the Collection Cycle Works

• Rain falls on a catchment surface — typically a roof.
• Gutters channel runoff to a downspout.
• A first-flush diverter discards the initial dirty flow — usually the first 5–10 gallons per event.
• Filtered water enters a storage tank or barrel.
• Gravity or a pump delivers water to drip lines, soaker hoses, or watering cans.

Runoff quality depends on the catchment surface material, surrounding tree canopy, and local air quality. Metal and tile roofs produce cleaner runoff than asphalt shingles, which leach oils and volatile compounds during the first minutes of each storm event.

Legal Status by Region

Rainwater collection is legal in most of the U.S., Canada, the UK, and Australia. A small number of U.S. states — historically including Colorado, Nevada, and Utah — limited per-household collection volumes, though most have since relaxed those restrictions. Checking with a local county extension office or water authority takes five minutes and eliminates any regulatory uncertainty before installation begins.

Benefits and Limitations: An Honest Assessment

Key Benefits

• Zero ongoing cost — collected water carries no per-gallon utility charge after the initial setup investment.
• Chlorine-free supply — beneficial soil bacteria and mycorrhizal fungi are not suppressed by chemical treatment.
• Slightly acidic pH (5.5–6.5) — naturally aligns with the preferred range for most vegetables and herbs.
• Soft water — low mineral content prevents calcium and salt buildup in containers and raised beds over time.
• Reduced runoff — on-site capture lowers stormwater pressure on local drainage infrastructure.
• Drought resilience — stored reserves remain usable during water-use restrictions that often target landscape irrigation.

Real Limitations

• Rainfall dependency — systems store what falls; extended dry spells drain reserves completely.
• Contamination risk — bird droppings, roof debris, and atmospheric pollutants degrade quality without proper filtration.
• Volume constraints — a standard 55-gallon barrel empties fast during peak summer irrigation demand.
• Not potable without treatment — collected rainwater suits garden use but requires advanced filtration before human consumption.
• Mosquito breeding — open or improperly sealed tanks quickly become standing-water habitat.

Always fit every storage tank with a tight-mesh lid — mosquitoes breed in less than a tablespoon of standing water, and an unsealed barrel becomes a liability within a week of filling.

Building a System: Step-by-Step Installation

Core Components

Every functional rainwater harvesting system needs five elements:

1. Catchment surface — the roof area intercepting rainfall.
2. Gutters and downspouts — conveyance pathway from roof to storage.
3. First-flush diverter — discards the first 5–10 gallons per event before clean water enters the tank.
4. Storage vessel — rain barrel, IBC tote, or in-ground cistern.
5. Distribution system — gravity-fed spigot, soaker hose, or pump-powered drip line.

Installation Steps

1. Calculate catchment yield. Multiply roof area (sq ft) × rainfall depth (inches) × 0.623. A 500 sq ft catchment section and 1 inch of rain yields approximately 311 gallons.
2. Select the downspout location. Choose the downspout closest to the primary garden area. Shorter distribution runs maintain better pressure and reduce pipe costs.
3. Install the first-flush diverter. Mount it 6 inches above the barrel inlet. Most commercial diverters route the first 10 gallons into a slow-drain standpipe before passing clean water onward.
4. Position the storage tank on an elevated platform. Raise the barrel at least 12–18 inches using cinder blocks or a wood stand. Every additional foot of elevation adds roughly 0.43 PSI of gravity pressure at the outlet.
5. Route the overflow outlet. Run overflow tubing away from the foundation — toward a rain garden, planted swale, or secondary linked barrel.
6. Attach a spigot at the tank base. Connect soaker hose or drip lines directly. For larger systems, a 12V submersible pump adds consistent pressure for overhead watering or long distribution runs.
7. Screen every opening. Cover all vents, inlets, and overflow pipes with 200-micron mesh to exclude insects and debris.

Pairing a gravity-fed drip system with a properly mulched garden bed significantly extends stored water reserves. A 3–4 inch mulch layer cuts surface evaporation by up to 50%, effectively doubling how far each barrel of harvested water goes between rain events.

What a System Costs: A Real Budget Breakdown

System costs scale with storage volume and automation level. The table below reflects typical retail pricing in North America across common setup types.

Used food-grade IBC totes — previously holding juice concentrate, food oils, or non-toxic liquids — offer the strongest value per gallon. Totes previously used for chemical or petroleum products must be avoided entirely. Most agricultural suppliers and online marketplaces list usable totes for $80–$150. Fittings, hose, and diverter kits typically add another $30–$60.

Beginner Setups vs. Advanced Systems

Starting Simple

A first-time setup needs only three components: a barrel, a downspout diverter kit, and a spigot. Most hardware stores carry pre-assembled rain barrel kits with a first-flush diverter included. Setup typically takes two to four hours. Common beginner mistakes include:

• Skipping the first-flush diverter, which allows roof contamination directly into the tank.
• Setting the barrel flat on the ground with no elevation, leaving no gravity pressure at the spigot.
• Using a single overflow pipe that drains back toward the house foundation.
• Forgetting to permanently cap or redirect the original downspout below the diverter, allowing water to bypass the barrel entirely.

Beginners growing food in containers — such as potatoes in grow bags or herbs in small raised planters — typically find that one or two barrels supply enough supplemental water to meaningfully reduce tap usage through the mid-growing season.

Scaling Up

Advanced setups incorporate multiple features that beginners rarely need initially:

• Multiple catchment points — gutters from a garage, shed, and greenhouse feed a central cistern.
• Inline sediment filters — cartridge filters installed before the tank, replaced each season.
• UV sterilization — for systems supplying water applied directly to edible leaf surfaces such as salad greens or herbs.
• Automated pump timers — drip irrigation runs on schedule without any manual involvement.
• Overflow swales — excess water from full tanks routes into planted swales that passively irrigate fruit trees or hedgerows.
• Water quality monitoring — inexpensive TDS meters and pH strips checked monthly to track contamination trends over time.

Integrating Rainwater Into Long-Term Garden Planning

A single barrel patches peak-season shortfalls. A planned, multi-component system reshapes how an entire garden operates across years and decades. Long-term integration means designing the garden around water flow — not retrofitting storage around an existing layout as an afterthought.

Matching Storage Capacity to Garden Size

A practical rule of thumb: plan for 1 gallon of storage per square foot of actively irrigated garden space. A 200-square-foot vegetable plot ideally carries 200 gallons in reserve — enough to sustain a full week of moderate irrigation during a dry spell without any rainfall replenishment.

Additional design choices that amplify stored water efficiency:

• Swales on contour — earthen berms slow surface runoff and allow it to percolate slowly into root zones rather than escaping the property.
• Hugelkultur beds — buried wood cores act as a slow-release water sponge, reducing irrigation demand by 30–50% in established beds.
• Companion planting for shade — taller crops reduce soil evaporation around shorter neighbors, cutting moisture loss on hot afternoons.
• Deep mulch layers — 3–4 inches of straw, wood chips, or shredded leaves under all beds maintains consistent soil moisture between watering cycles.
• Perennial groundcovers — living mulch between crop rows prevents surface evaporation and compaction at the same time.

Seasonal Maintenance Calendar

• Spring: Inspect tanks for algae, clean all inlet and overflow screens, test first-flush diverter function before the rainy season begins.
• Summer: Monitor water levels weekly. Clean sediment from barrel bottoms monthly if algae is visible. Flush and refill tanks that develop odors.
• Fall: Drain and winterize barrels before the first hard freeze to prevent expansion cracking.
• Winter: Disconnect downspout diverters. Inspect fittings, hoses, and spigots for damage. Replace cracked components before spring reinstallation.

Common System Problems and Practical Fixes

Algae Growth Inside the Tank

Algae proliferates when sunlight penetrates stored water. Prevention is straightforward:

• Use opaque, UV-resistant dark-colored tanks — black or dark green are standard.
• Wrap translucent IBC totes in shade cloth or coat with exterior latex paint.
• If algae is already established, empty the tank completely, scrub with a 1:100 bleach-to-water solution, and rinse thoroughly before refilling.

Mosquito Larvae in the Barrel

• Verify all mesh screens are intact with no gaps or tears.
• Add Bacillus thuringiensis israelensis (Bti) dunk tablets — a biological larvicide that is safe for plants, soil, and beneficial insects.
• Confirm overflow pipes are screened at both the inlet and the outlet ends.

Weak or No Pressure at the Spigot

• Raise the barrel higher — each additional foot of elevation adds 0.43 PSI of gravity pressure.
• Replace narrow outlet tubing with 3/4-inch diameter hose, which roughly doubles flow rate compared to 1/2-inch tubing.
• Route drip lines downhill from the barrel to maximize passive gravity delivery.

Odor Coming from Stored Water

Odor almost always indicates anaerobic decomposition from organic debris inside the tank. Flush and scrub the system thoroughly. Upgrade to a finer first-flush diverter. Clean the gutters above the catchment area — accumulated leaf litter is the most common debris source.

Tank Overflows Too Quickly During Heavy Rain

• Link additional barrels in series using 1-inch overflow tubing connected at the top of each tank.
• Route overflow into a rain garden planted with moisture-tolerant species that absorb excess runoff.
• Open the spigot to draw down tank capacity during a storm when overflow is imminent.

Frequently Asked Questions

Every gallon of rain captured is a gallon that never cost a cent, never carried chemicals, and arrived exactly when the garden needed it most.
